Introduction​

PDB-Explorer is a web application for the interactive visualization of chemical space of the RCSB Protein Data Bank (PDB), characterized by protein shape fingerprint (3DP) and shape similarity search for molecules in PDB. The chemical space is represented as 3DP PCA maps. PDB-Explorer contains X-ray structures from PDB, updated daily with the latest additions.

Molecules in PDB-Explorer​

  • X-ray molecules are biological assemblies defined by the author.
  • Ribbon images are generated with PyMOL.
  • 3D models can be viewed in PV viewer or JSmol.
  • If a PDB entry has no secondary structures or contains only alpha carbons, default cartoon mode may not display (e.g. 1O55, 1IVI). In such cases, switch PV display mode to lines. JSmol may sometimes detect secondary structures automatically.

Protein Shape Fingerprint (3DP)​

3DP captures the spatial distribution of shape, hydrophobicity, and charges across a wide size range. See References for details.

3DP PCA Maps​

Maps represent PC planes (PC1–PC2, PC2–PC3, or PC1–PC3) from PCA of the 200-dimensional 3DP similarity space.

Each map is a 300 × 300 grid, color-coded by properties such as:

  • Heavy atom count
  • % Hydrophobic atoms
  • % Negative charge atoms
  • % Positive charge atoms
  • Molecular Volume Occupancy (MVO)
  • Normalized PMI (nPMI)
  • Occupancy (number of molecules at that point)

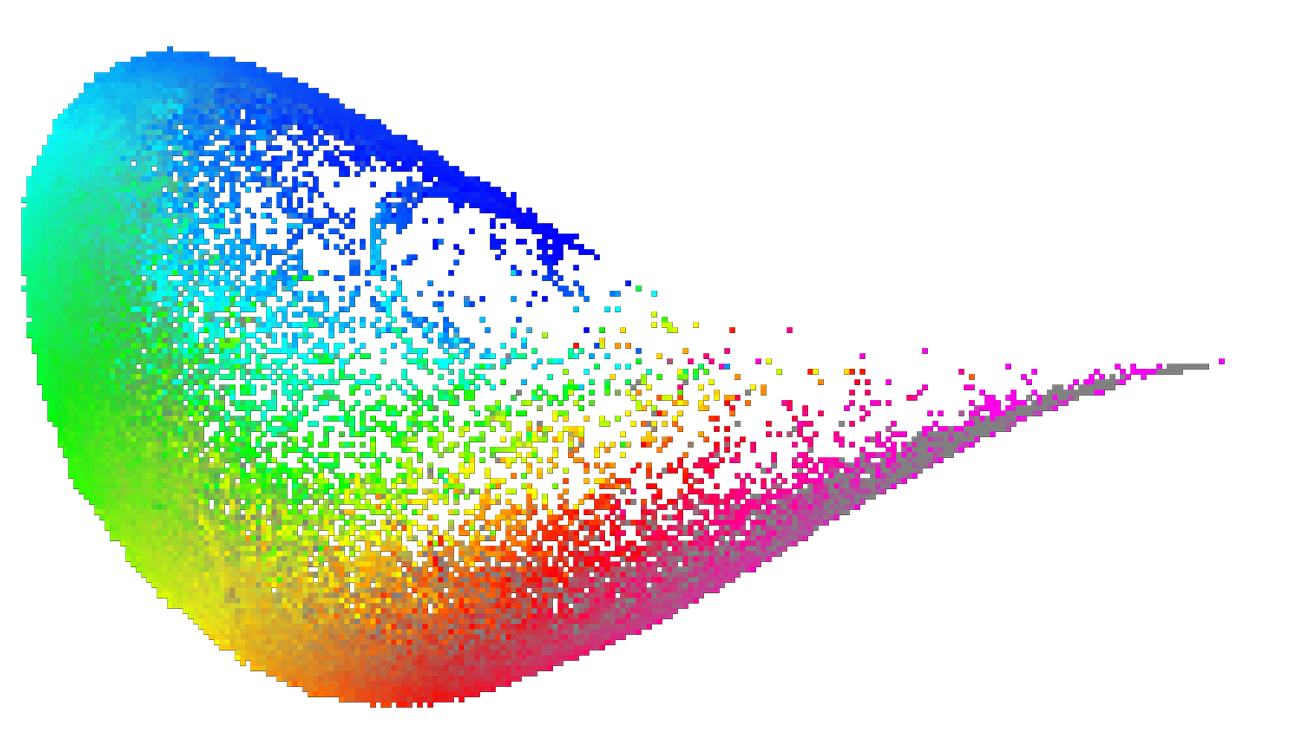

Example: PC1–PC2 map color-coded by heavy atom count

3DP PCA map Figure 1: 3DP PCA map color coded by Heavy Atom Count property

Color Coding​

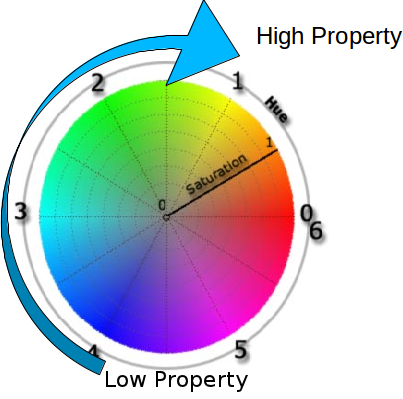

We use HSL (Hue, Saturation, Luminance) color space:

HSL color space Figure 2: HSL color space

  • Hue → base property value
  • Saturation → standard deviation
  • Luminance → occupancy (number of molecules)

Color gradient goes from blue → cyan → green → yellow → red → magenta as property value increases.

Similarity Measure​

Similarity is quantified with City Block Distance (CBD). For two molecules A and B with P dimensions:

CBD formula

Results are sorted by increasing CBD distance.

Functionalities in PDB-Explorer​

Choose the Map​

  • Select available maps from the dropdown menu.
  • Default = Heavy atom count map.

Mouse Controls​

  • Mouse move: shows PDB code, coordinates, ribbon image, average, and deviation.
  • Mouse wheel: zoom in/out.
  • Double click: reset to full view.
  • Drag: move map.
  • Single click: show PDB entries at the clicked pixel.

Protein List​

  • Lists molecules at selected map points.
  • Options: JSmol (3D viewer) or pdb.org (external link).
  • You can also trigger similarity search from a selected entry.

Download​

  • Download Zip: get 3D coordinates of all molecules at a map point.

Upload Molecule​

  • Drop/upload your own .pdb file.
  • Displays its position (black droplet).
  • Searches for similar molecules in PDB automatically.
  • Note: only atoms labeled ATOM are considered. Non-standard residues must be changed from HETATM to ATOM.

Lookup PDBs​

  • Locate one or more PDB codes on the map (yellow droplets).

Sort by Similarity​

  • Enter PDB code + search options:
    • Max Count = number of similar molecules to retrieve
    • Max Distance = threshold for similarity (default = 1000)
  • Results are ranked by similarity, with the query molecule marked (blue droplet).

Help​

  • Opens this help document in the browser.

Example with PDB code 4ERW (Locate Molecule / Similarity Search)​

4ERW = Cyclin-dependent kinase 2.

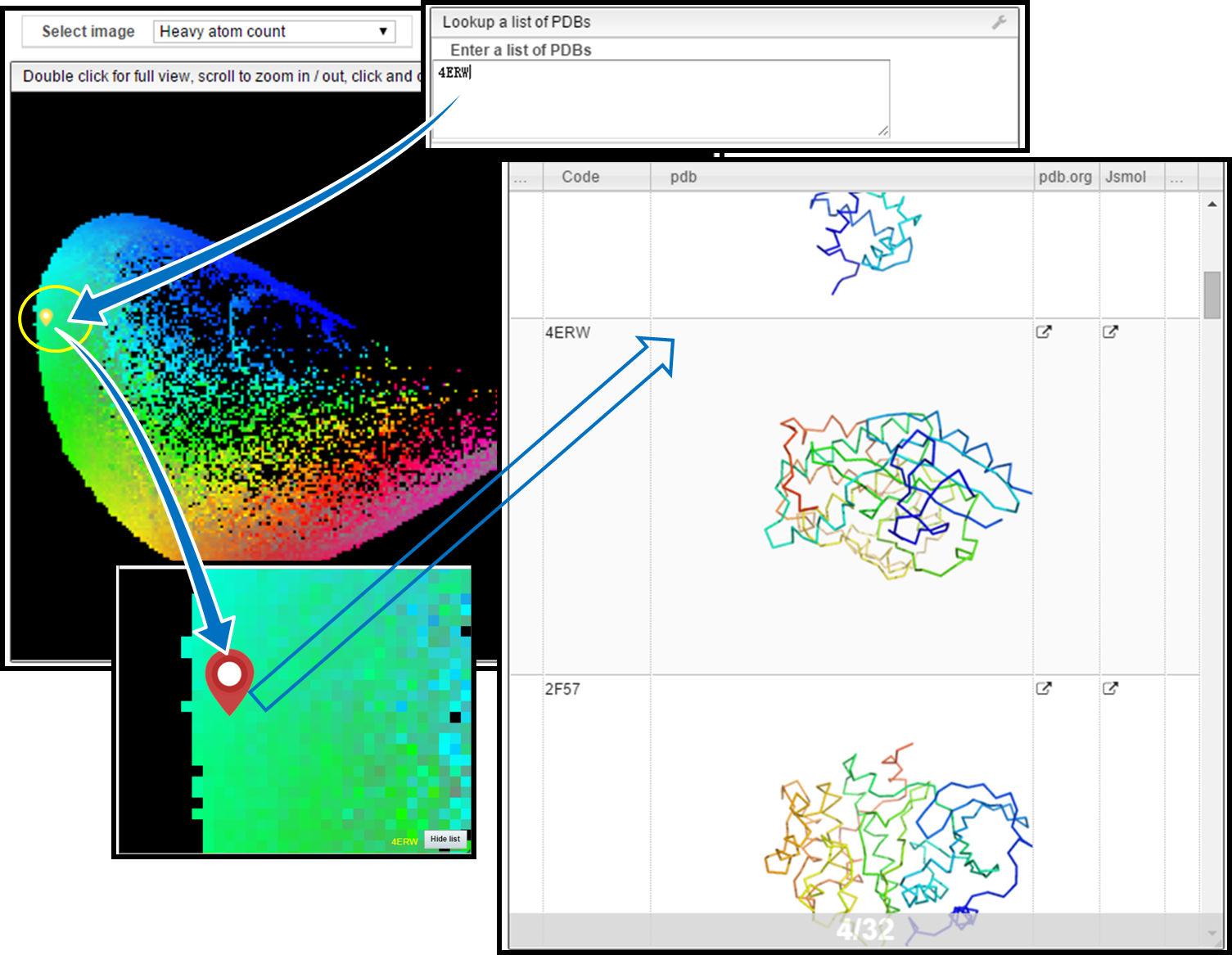

1. Locate Molecule​

  • Enter 4ERW in the Lookup PDBs field.
  • Its position appears as a yellow droplet.

2. Show Molecules in the Same Pixel​

  • Single-clicking the yellow pixel shows all molecules in that map cell (red droplets).
  • Example: 32 molecules share the same pixel as 4ERW.

4ERW Example

  1. Enter PDB code = 4ERW.
  2. Select options:
    • Max Count = 100
    • Max Distance = 1000 (default)
  3. Click Search by Similarity.

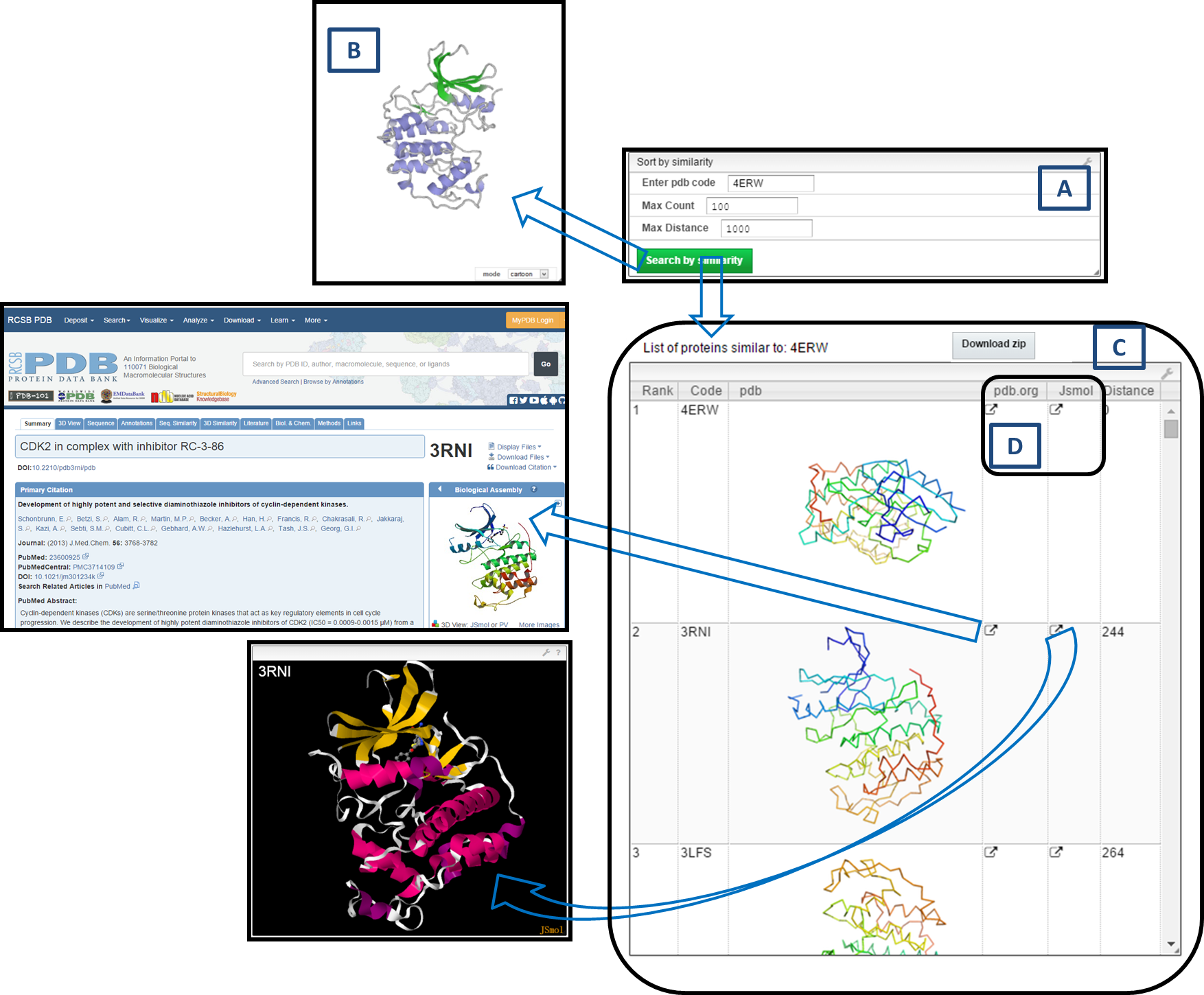

  4. Results:

4ERW Similarity Results

  • A: Query entry + search options
  • B: PV viewer shows ribbon structure of 4ERW
  • C: Similar molecules list (code, image, rank, distance)
  • D: Links → pdb.org (details) or JSmol (3D structure)

Supported Browsers and Technical Support​

  • Best in Chrome (v42+)
  • Also supported: Firefox (v36), Safari 9 (preview)
  • Not yet supported: Safari 8, Internet Explorer, Edge

For suggestions/questions: xian.jin@dcb.unibe.ch
